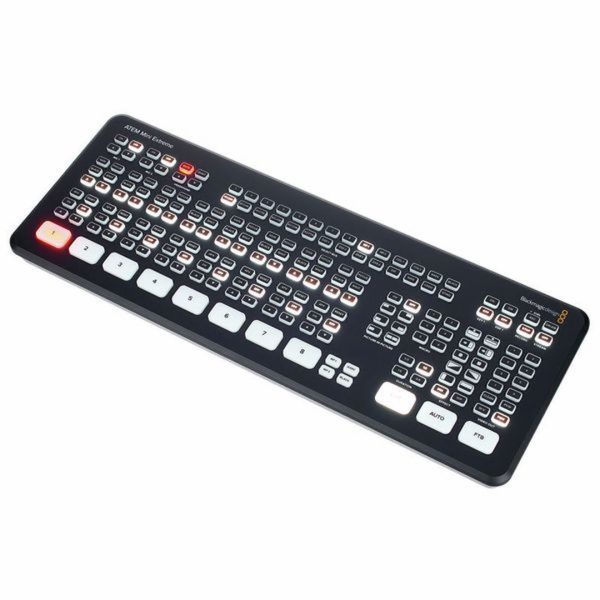

Blackmagic ATEM Mini Extreme 8 Switcher

Description

Blackmagic Design ATEM Mini Extreme is an advanced switcher for true professionals! You get all the ATEM Mini Pro features plus 8 HDMI inputs, 2 separate HDMI outputs, 2 USB ports and a headphone connection. There are also 4 chroma keyers, 6 picture in picture DVEs, 2 media players, and a multiview with up to 16 views!

Connections

Total Video Inputs: 8
Total Outputs: 2
Total Aux Outputs: 2
Total Audio Inputs: 2 x 3.5mm stereo mini jack.
Total Audio Outputs: 1 x 3.5mm stereo mini jack.
Timecode Connection: None
HDMI Video Inputs: 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
Video Input Re-Sync: On all 8 HDMI inputs.
Frame Rate and Format Converters: On all 8 HDMI inputs.
HDMI Program Outputs: 2
Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards

HD Video Input Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HD Video Output Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Streaming Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards: None
Video Sampling: 4:2:2 YUV
Color Precision: 10-bit
Color Space: Rec 709
HDMI Input Resolutions from Computers:
1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
1920 x 1080i 50, 59.94Hz and 60Hz
Colorspace Conversion: Hardware based real time.
Product Specifics

Upstream Keyers: 4
Downstream Keyers: 2
Advanced Chroma Keyers: Up to 4
Linear/Luma Keyers: Up to 4
Transition Keyer: DVE only.
Total Number of Layers: 9
Pattern Generators: 5
Color Generators: 2
DVE With Borders and Drop Shadow: 2
Interface: Minimum monitor resolution of 1366 x 768.
Audio

Audio Mixer:
11 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog Input: Unbalanced stereo
Analog Input Delay: Up to 8 frames
Input Impedance: 1.8k
Max Input Level: +6dBV
Mic Plug In Power: Available on both 3.5mm mini jack connections.
Streaming

ATEM Mini Extreme supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

Multi View Monitoring: Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.
Multi View Video Standard: HD
Media Player

Media Players: 2
Channels: Fill and key for each Media Player.
Media Pool Still Image Capacity: 20 with fill and key.
Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
